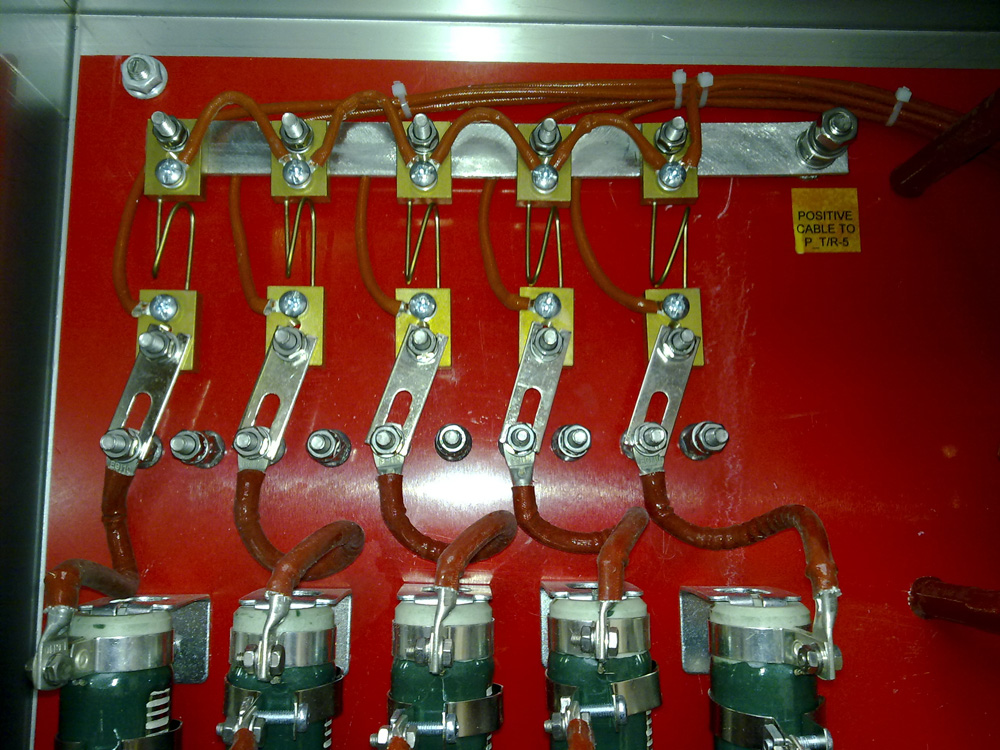

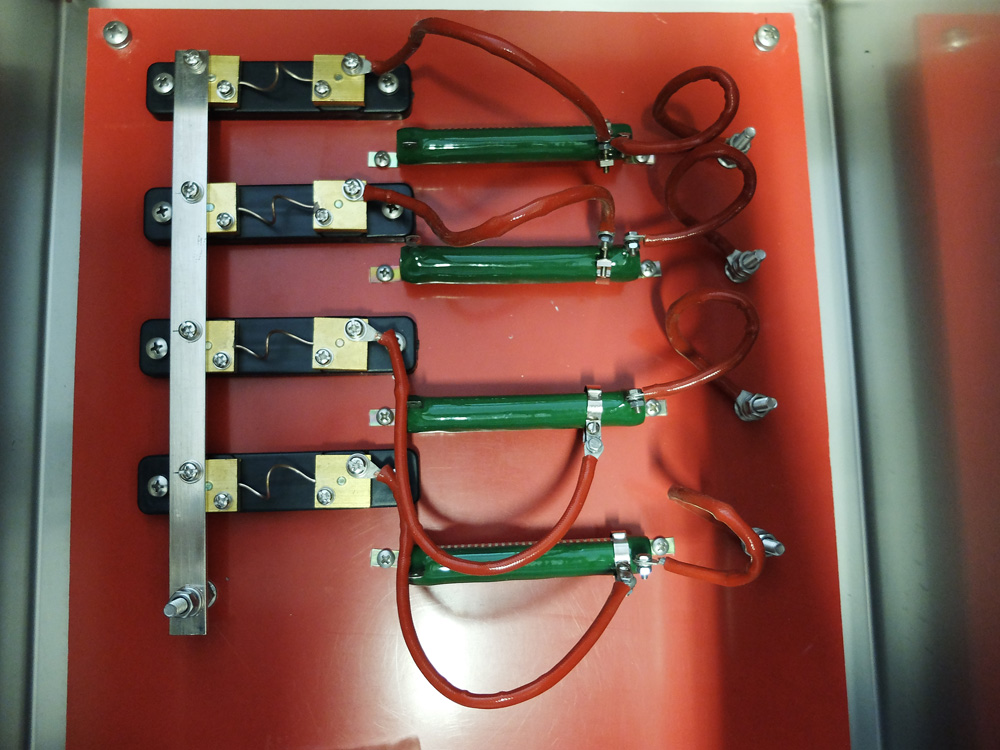

Junction boxes are used to connect all the different C.P equipment ensuring effective protection and easy inspection. Junction Boxes may be equipped with DIN-rail terminals, busbar with bolted connections and many different control and regulation equipment such as variable resistors, measuring shunts, reed switches, spark gaps and rectifier diodes.

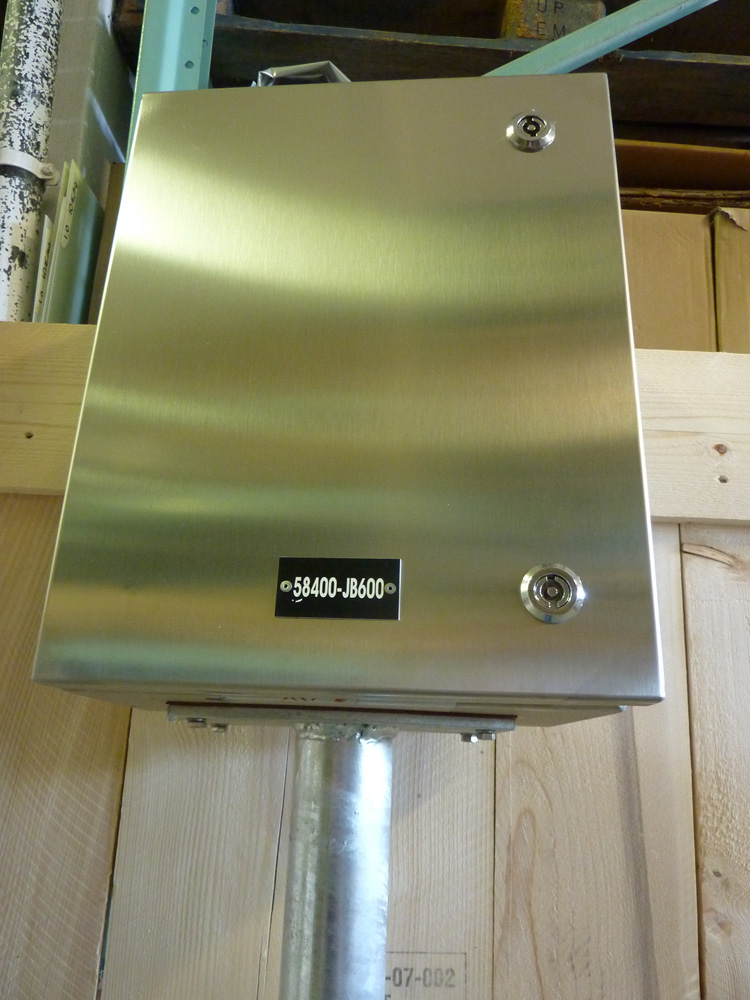

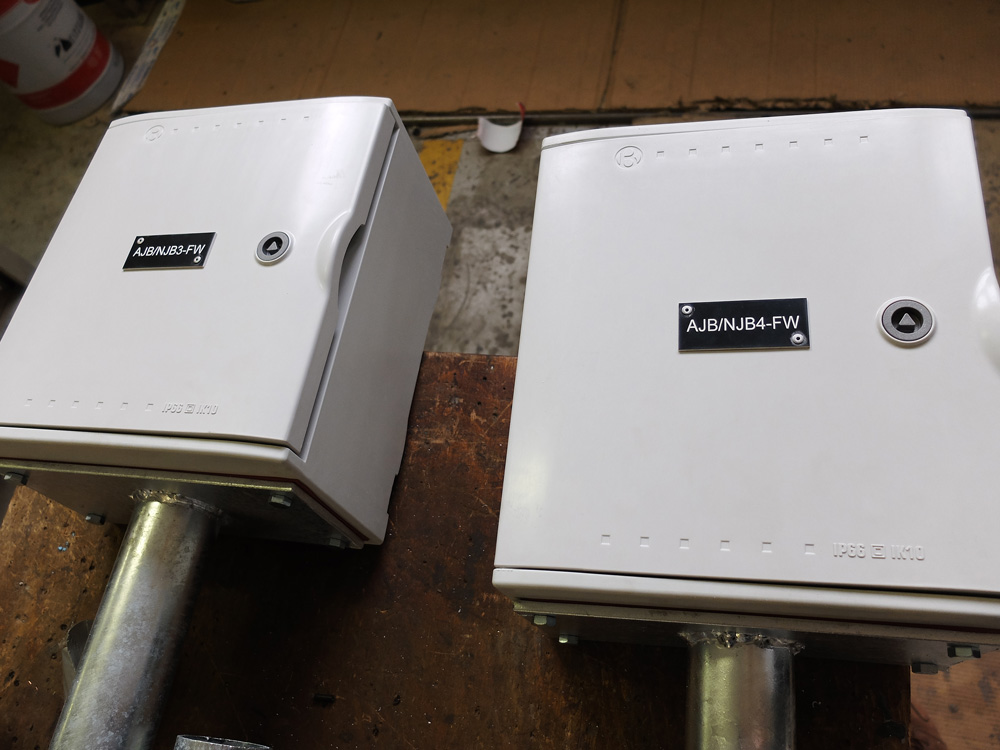

Every JB is designed and constructed according Customer requirements or project design, with materials including epoxy-painted steel, aluminum, polycarbonate, glass-reinforced polyester, AISI 304 or AISI 316L stainless steel and many others. ATEX execution is available for potentially explosive areas in Ex-e and Ex-d executions.

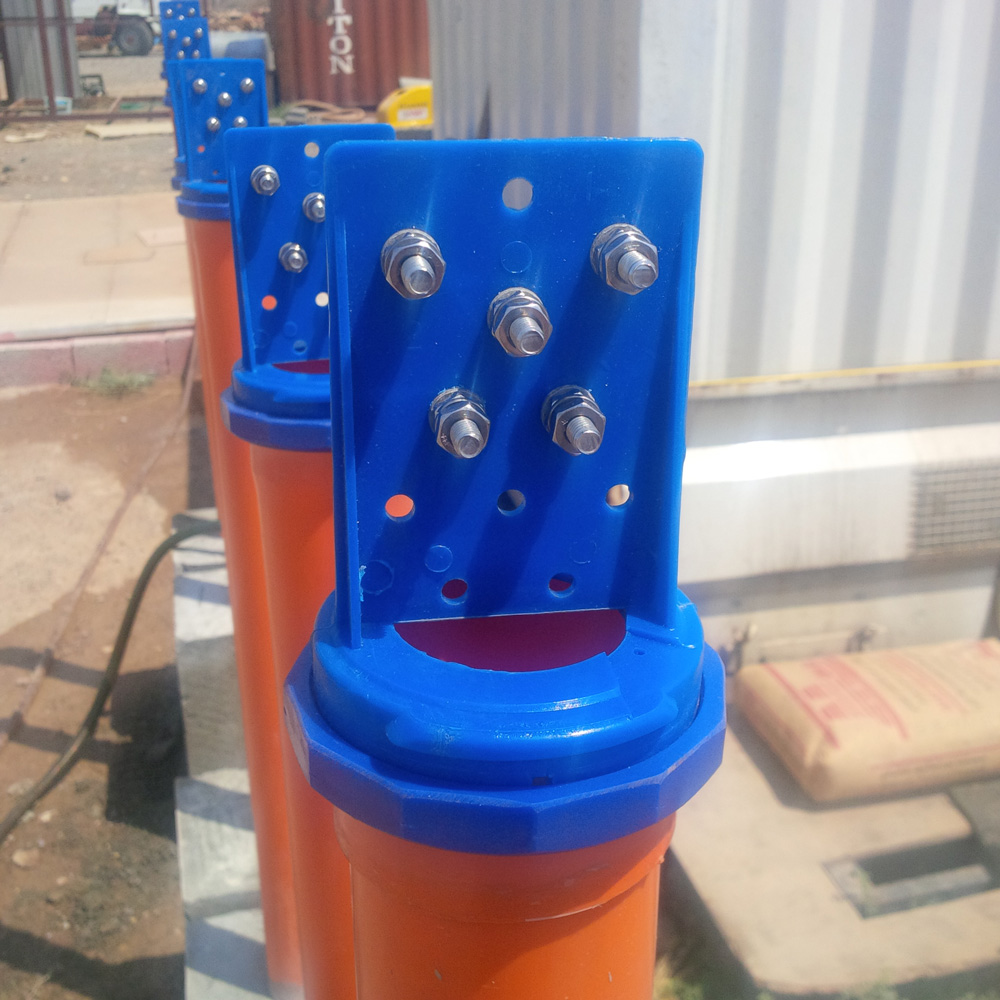

Test stations are used to measure structure-to-soil potentials. Many different designs are available according Project specifications.
Product list:
- Junction Boxes for C.P. systems
- Test stations
